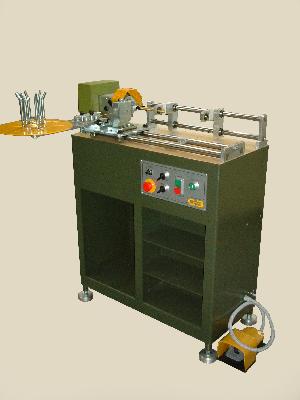

Winding Machine
FUNCTIONS AND PARTS OF THE WINDING MACHINE
Winding machine was planned to wind wires and tubes during different types of working procedure and in particular:
- CONTINUOUS WINDING WITH SMOOTH MANDREL, thanks to which differently shaped full wires and wires with core of various dimensions can be wound;
- WINDING PROCEDURE WITH OVAL FORMED MANDREL, thanks to which, starting from plate, open tube can be formed and winded, on a formed oval mandrel;
- GOOSE-NECK OR FLEXIBLE TUBE WINDING, the working procedure is performed by means of a fixed or mobile carriage with two profiles, which are contemporaneously placed embedded and the one of which is up-side-down as compared to the other one.
The rotation of the mandrel is driven by means of an adjustable-speed motor. The carriage is loose.
It is possible to work both in continuous and manual mode (by means of a threadle drive).
This machine can be used under normal mode (rotation) or with an ejection system (rotation and alternated ejection system).
- CONTINUOUS WINDING WITH SMOOTH MANDREL, thanks to which differently shaped full wires and wires with core of various dimensions can be wound;
- WINDING PROCEDURE WITH OVAL FORMED MANDREL, thanks to which, starting from plate, open tube can be formed and winded, on a formed oval mandrel;
- GOOSE-NECK OR FLEXIBLE TUBE WINDING, the working procedure is performed by means of a fixed or mobile carriage with two profiles, which are contemporaneously placed embedded and the one of which is up-side-down as compared to the other one.
The rotation of the mandrel is driven by means of an adjustable-speed motor. The carriage is loose.
It is possible to work both in continuous and manual mode (by means of a threadle drive).
This machine can be used under normal mode (rotation) or with an ejection system (rotation and alternated ejection system).
TECHNICAL FEATURES OF THE WINDING MACHINE
OVERALL DIMENSIONS 950 x 450 x 1120 (h) mm
TARE WEIGHT OF THE MACHINE 250 kg ca.
POWER SUPPLY 380 V - 50 Hz
TOTAL POWER 1 kW
WORKPIECE COUNTER – REVOLUTION COUNTER Optional
MAXIMUM WINDING DIAMETER 120 mm
MAXIMUM DIAMETER OF THE WIRE 6 mm
MAXIMUM DIAMETER OF THE TUBE 10 mm
EJECTION SYSTEM Can be mechanically adjusted on the mandrel
ROTATION SPEED Can be mechanically adjusted (adjustable-speed motor)
NOISE LEVELS AT THE WORK STATION Lp = 78 dB(A)
